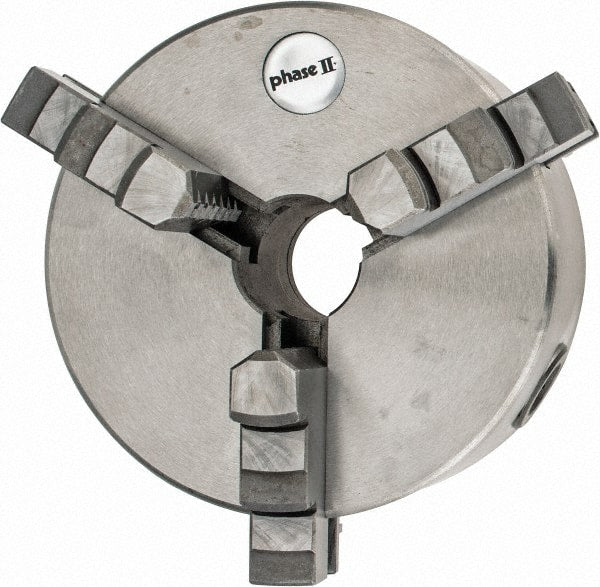

Phase II - 3 Jaws, 5" Diam, Self Centering Manual Lathe Chuck - Plain Back Mount Spindle, Reversible, 1.18" Through Hole Diam, Cast Iron
Item #: 03795846
Brand: Phase II
Model #: 559-112
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Cast iron also called semi-steel is the industry standard for chuck body material.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 5 |
| Number of Jaws | 3 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 1.1800 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | One-Piece |
| Chuck Diameter (Inch) | 5 |
| Adjustable | No |
| Includes | Chuck Key; Mounting Screws |
