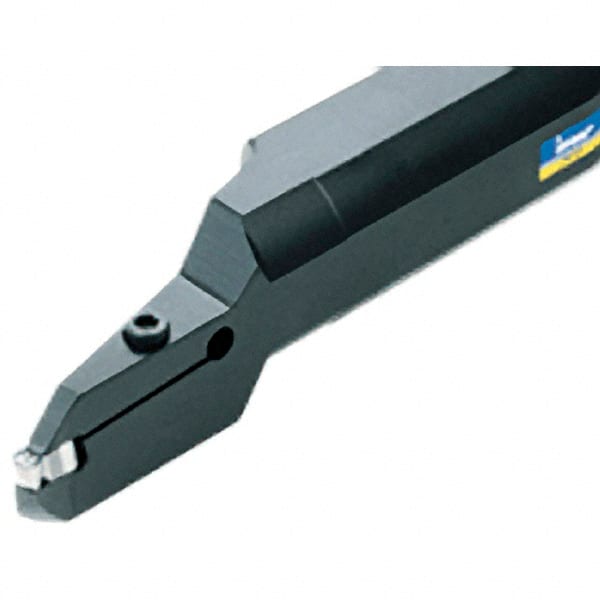

Iscar - 100mm Min Bore Diam, 350mm OAL, 50mm Shank Diam, GHIU-C-A Indexable Boring Bar - 83mm Max Bore Depth, GDMA 840, GI.. 8.. Insert
Item #: 03840543
Brand: Iscar
Model #: 2801236
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GHIU-C-A |
| Series | Cut Grip |
| Minimum Bore Diameter (mm) | 100.00 |
| Minimum Bore Diameter (Decimal Inch) | 3.9370 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 83.00 |
| Maximum Bore Depth (Decimal Inch) | 3.2677 |
| Overall Length (mm) | 350.00 |
| Overall Length (Decimal Inch) | 13.7795 |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Insert Compatibility | GDMA 840; GI.. 8.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving |
| Center to Cutting Edge (mm) | 26.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0236 |
| Complete Insert Compatibility | GDMA 840; GIDA 80-40; GIDA 80-40-D; GIDA 80-40YZ; GIDA 80-40YZ-D; GIPA 8.00-4.00 |
