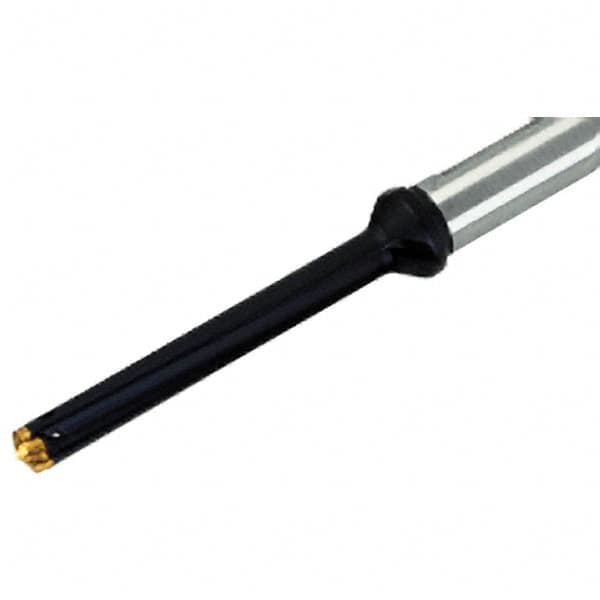

Iscar - 0.394 to 0.429" Diam, 8xD, 3.15" Max Depth, 5/8" Shank Diam, 5.59" OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, 10 Seat Size, DCM Toolholder, Series ChamDrill
Item #: 03889847
Brand: Iscar
Model #: 3200957
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (Decimal Inch) | 0.3940 |
| Maximum Drill Diameter (Decimal Inch) | 0.4290 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 3.1500 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | IDI-SG; IDI-SK |
| Insert Seat Size | 10 |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 3.7000 |
| Overall Length (Decimal Inch) | 5.5900 |
| Shank Length (Decimal Inch) | 1.8900 |
