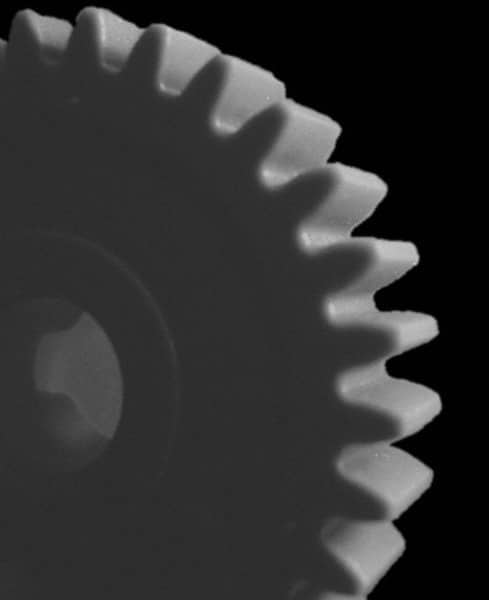

Made in USA - 24 Pitch, 0.917" Pitch Diam, 1" OD, 22 Tooth Spur Gear - 1/4" Face Width, 3/16" Bore Diam, 35/64" Hub Diam, 20° Pressure Angle, Acetal
Item #: 03925138
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Spur Gear |
| Number of Teeth | 22 |
| Hub Diameter (Decimal Inch) | 0.5500 |
| Hub Diameter (Inch) | 35/64 |
| Pitch Diameter (Decimal Inch) | 0.9170 |
| Bore Diameter (Inch) | 3/16 |
| Bore Diameter (Decimal Inch) | 0.1875 |
| Material | Acetal |
| Face Width (Inch) | 1/4 |
| Face Width (Decimal Inch) | 0.2500 |
| Pressure Angle | 20 |
| PSC Code | 3020 |
