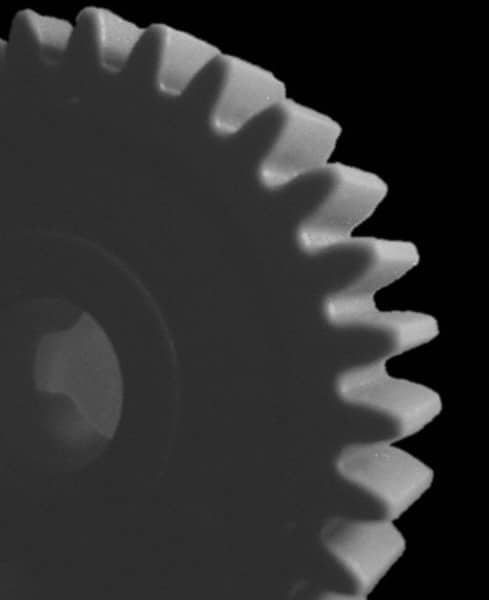

Made in USA - 24 Pitch, 1.083" Pitch Diam, 1.167" OD, 26 Tooth Spur Gear - 1/4" Face Width, 1/4" Bore Diam, 5/8" Hub Diam, 20° Pressure Angle, Acetal
Item #: 03925179
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Spur Gear |
| Number of Teeth | 26 |
| Hub Diameter (Decimal Inch) | 0.6300 |
| Hub Diameter (Inch) | 5/8 |
| Pitch Diameter (Decimal Inch) | 1.0830 |
| Bore Diameter (Inch) | 1/4 |
| Bore Diameter (Decimal Inch) | 0.2500 |
| Material | Acetal |
| Face Width (Inch) | 1/4 |
| Face Width (Decimal Inch) | 0.2500 |
| Pressure Angle | 20 |
| PSC Code | 3020 |
