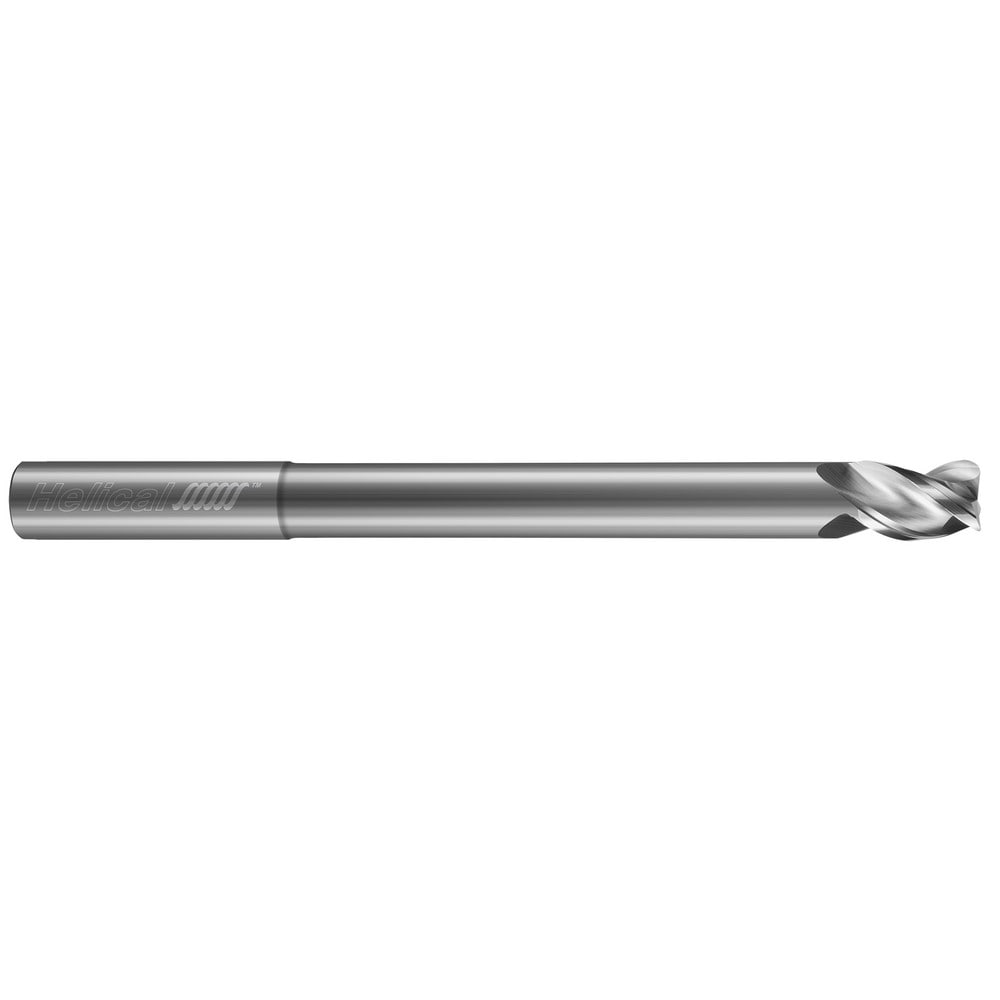

Brand: Helical Solutions / Part #: 46055
Item #: 99094633
Brand: Helical Solutions
Model #: 46055
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Coating/Finish | Uncoated |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 3 |
| Single Or Double End | Single |
| Overall Length (Inch) | 2-1/2 |
| Length of Cut (Inch) | 7/32 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Flute Direction | Right Hand |
| Helix Angle | 40 |
| Overall Length (Decimal Inch) | 2.5000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2188 |
| Extended Reach | Yes |
| Shank Type | Round |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Diameter (Inch) | 3/16 |
| Reach Length (Decimal Inch) | 0.5000 |
| Reach Length (Inch) | 1/2 |
| Series | End Mills for Aluminum - 3 Flute - Corner Radius - 40? Helix - Variable Pitch - Reduced Neck |
