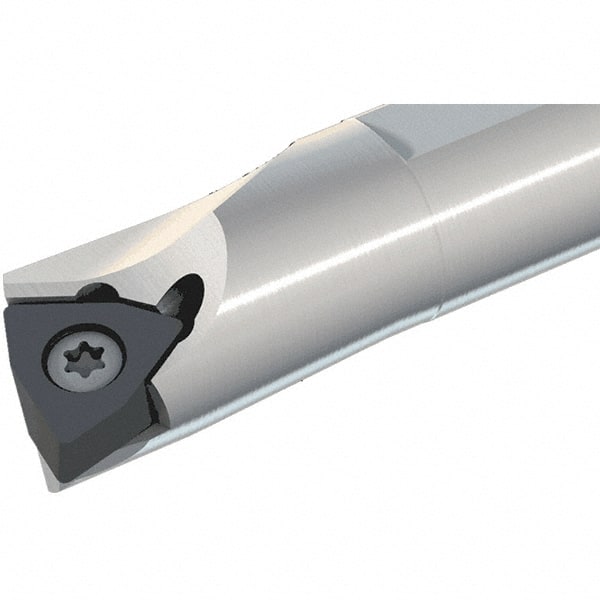

Iscar - Indexable Boring Bars Toolholder Style: E20S SWLNL Series: Isoturn
Item #: 46665063
Brand: Iscar
Model #: 6989907
Product Specifications
Indexable Boring Bars; Toolholder Style: E20S SWLNL ; Series: Isoturn ; Minimum Bore Diameter (mm): 22 ; Minimum Bore Diameter (Decimal Inch): 0.866 ; Hand of Holder: Left Hand ; Maximum Bore Depth (mm): 120
| Toolholder Style | E20S SWLNL |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 22 |
| Minimum Bore Diameter (Decimal Inch) | 0.866 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 120 |
| Maximum Bore Depth (Decimal Inch) | 4.724 |
| Overall Length (mm) | 250 |
| Overall Length (Decimal Inch) | 9.842 |
| Shank Diameter (mm) | 20 |
| Shank Diameter (Decimal Inch) | 0.787 |
| Insert Compatibility | WNGP |
| Through Coolant | Yes |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Number of Inserts Included in Order | 0 |
