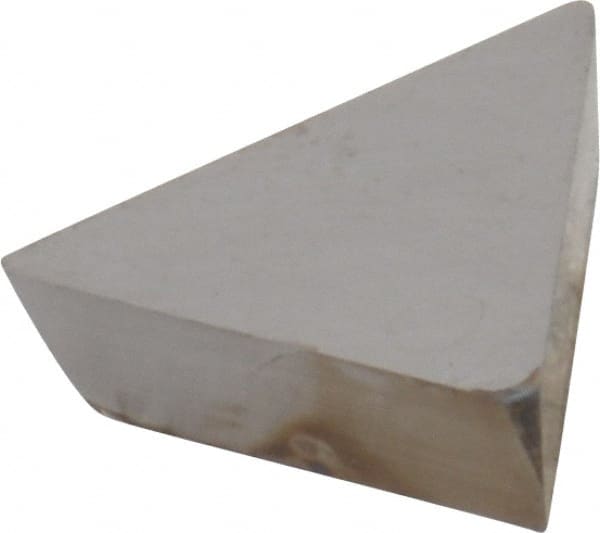

Interstate - TPG221 Grade I22 Carbide Turning Insert - 60° Triangle, 1/4" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 04002101
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPG |
| Insert Size | 221 |
| Material | Carbide |
| Length (mm) | 11.00 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | I22 |
| Material Grade | C2 |
| ISO Number | TPGN110304 |
| Relief Angle | 11 |
| Primary Workpiece Material | M; K; N; S |
| Included Angle | 60 |
| Insert Holding Method | Clamp |
| Shape | Triangle |
