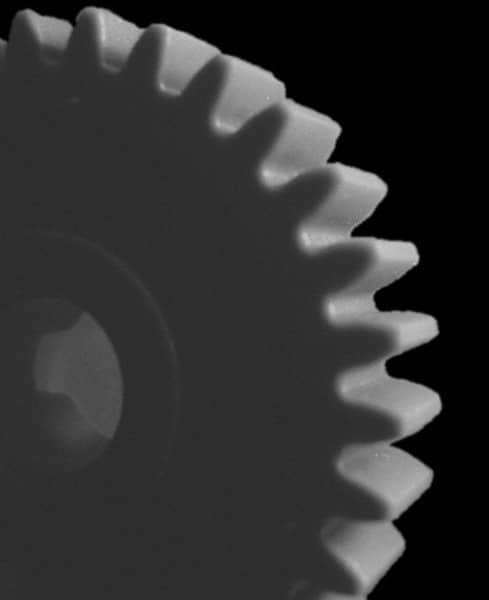

Made in USA - 32 Pitch, 9/16" Pitch Diam, 5/8" OD, 18 Tooth Spur Gear - 3/16" Face Width, 5/32" Bore Diam, 11/32" Hub Diam, 20° Pressure Angle, Acetal
Item #: 04034500
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Spur Gear |
| Number of Teeth | 18 |
| Hub Diameter (Decimal Inch) | 0.3400 |
| Hub Diameter (Inch) | 11/32 |
| Pitch Diameter (Decimal Inch) | 0.5620 |
| Bore Diameter (Inch) | 5/32 |
| Bore Diameter (Decimal Inch) | 0.1560 |
| Material | Acetal |
| Face Width (Inch) | 3/16 |
| Face Width (Decimal Inch) | 0.1880 |
| Pressure Angle | 20 |
| PSC Code | 3020 |
