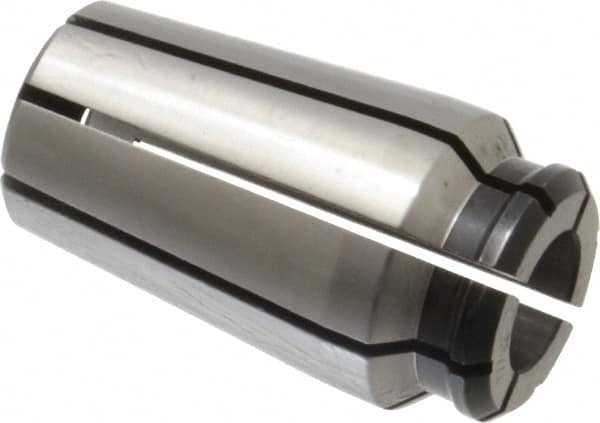

Centaur - 33/64 to 17/32 Inch Collet Capacity, Series 75 AF Collet - 1.13 Inch Overall Diameter, 2.02 Inch Overall Length
Item #: 04051074
Brand: Centaur
Model #: RDF - 124
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet Series | 75 |
| Minimum Collet Capacity (Inch) | 33/64 |
| Maximum Collet Capacity (Inch) | 17/32 |
| Maximum Collet Capacity (Decimal Inch) | 0.5313 |
| Overall Length (Decimal Inch) | 2.0200 |
| Overall Diameter (Decimal Inch) | 1.1300 |
| PSC Code | 5136 |
