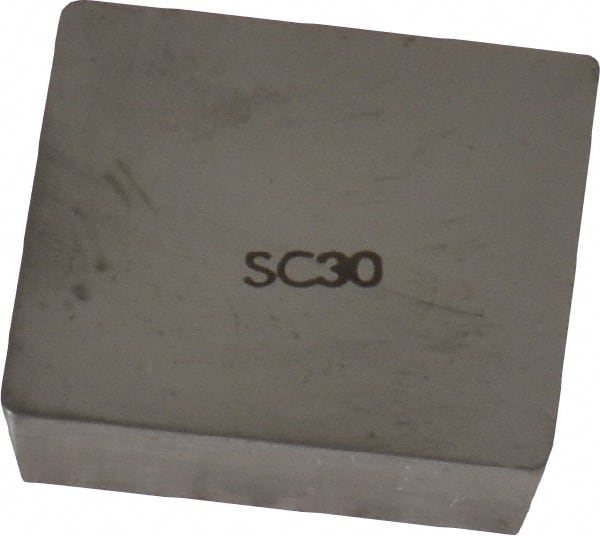

Interstate - SPG632 Grade I55 Carbide Turning Insert - Uncoated, 90° Square, 3/4" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 04056230
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPG |
| Insert Size | 632 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | I55 |
| Coating | Uncoated |
| Material Grade | C5/C6 |
| Relief Angle | 11 |
| Primary Workpiece Material | P |
| Included Angle | 90 |
| Insert Holding Method | Clamp |
| Shape | Square |
