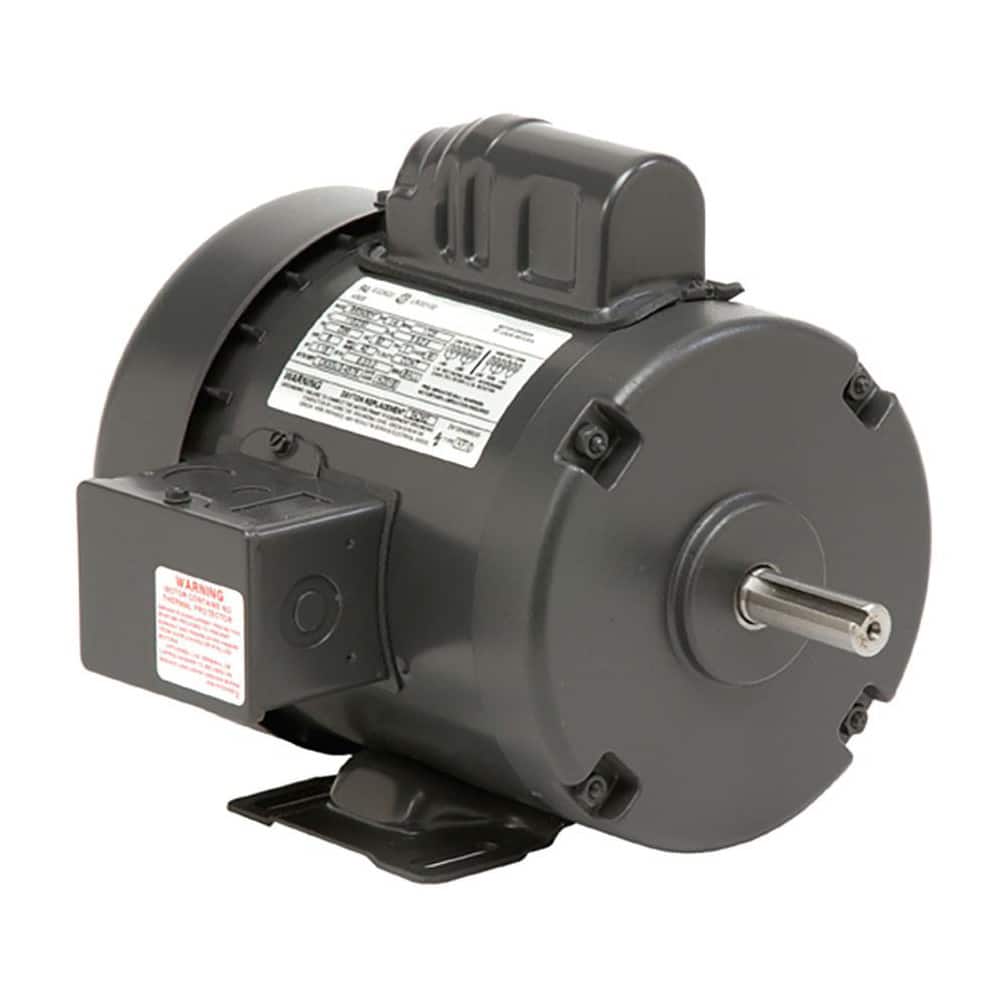

3/4 hp, TEFC Enclosure, Manual Thermal Protection, 1,725 RPM, 115/208-230 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor Size 56 Frame, Rigid Mount, 1 Speed, Ball Bearings, 10.8/5.4 Full Load Amps, B Class Insulation, Reversible
Item #: 04089397
Brand: US Motors
Model #: T34CM2J
Product Specifications
| Motor Type | Single Phase Permanent Split Capacitor (PSC) |
| Type of Enclosure | TEFC |
| Motor Design | 1-Phase |
| Horsepower | 3/4 |
| Thermal Protection Rating | Manual |
| Enclosure Style | TEFC |
| Name Plate RPMs | 1725 |
| Voltage |
|
| Nameplate Rpm | 1725 RPM |
| Frequency Hz | 60 Hz; 60 |
| Frame Size | 56 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Number Of Phases | 1 |
| Application | General Purpose |
| Full Load Amperage |
|
| Shaft Diameter X Length | 5/8 x 1-7/8 |
| Full Load Efficiency Rating | 73.50 |
| Service Factor Rating | 1.15 |
| Applications | General Purpose |
| Insulation Class | B |
| Overall Length (Decimal Inch) | 12.0600 |
| Shaft Diameter x Length | 5/8 x 1-7/8 |
| Motor Rotation | Reversible |
| Phase | 1 |
| PSC Code | 6105 |
