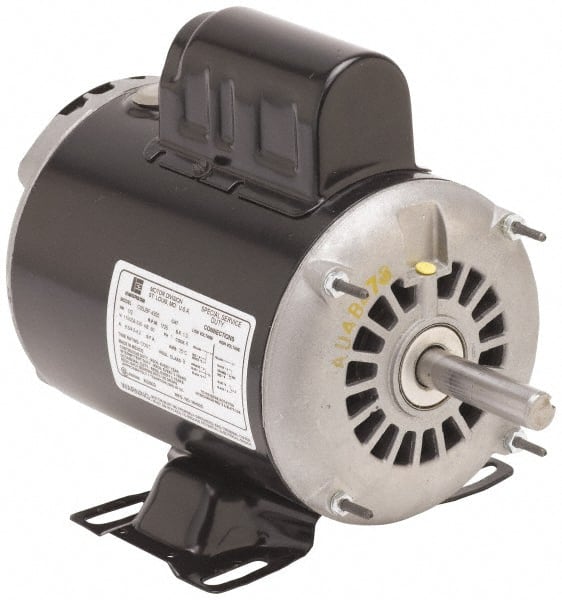

US Motors - 1 hp, ODP Enclosure, No Thermal Protection, 1,740 RPM, 115/230 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor - Size 182 Frame, Rigid Mount, 1 Speed, Ball Bearings, 14.4/7.2 Full Load Amps, F Class Insulation, Reversible
Item #: 04091278
Brand: US Motors
Model #: D1C2P18Z
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase Permanent Split Capacitor (PSC) |
| Type of Enclosure | ODP |
| Horsepower | 1 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1740 |
| Voltage | 115/230 |
| Frequency Hz | 60 |
| Frame Size | 182 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 14.4/7.2 |
| Insulation Class | F |
| Overall Length (Decimal Inch) | 12.7700 |
| Shaft Diameter x Length (Inch) | 7/8 x 2-1/4 |
| Service Factor Rating | 1.25 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
