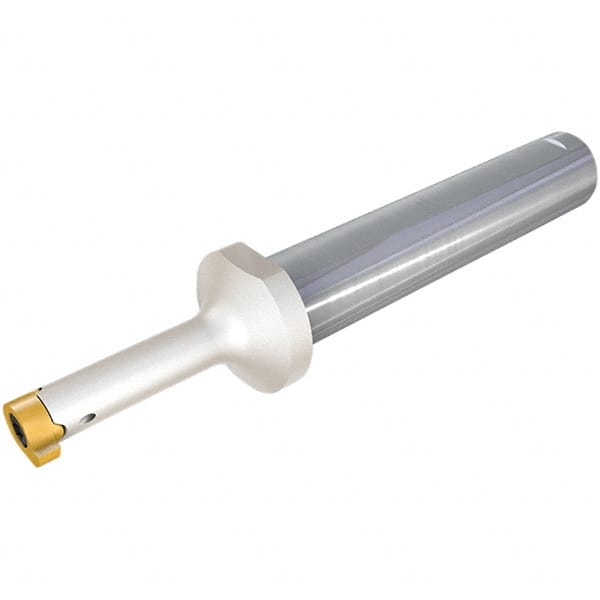

Iscar - MG, Internal, Neutral, 2.3mm Max Depth of Cut, 0.5 to 3mm Groove Width, Indexable Grooving Tool Holder - GIQ. 11.. Insert Compatibility, 12mm Shank Width, 92.5mm OAL, Through Coolant
Item #: 04095055
Brand: Iscar
Model #: 2800909
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0906 |
| Maximum Depth of Cut (mm) | 2.30 |
| Minimum Groove Width (Decimal Inch) | 0.0197 |
| Minimum Groove Width (mm) | 0.50 |
| Maximum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1181 |
| Overall Length (mm) | 92.50 |
| Overall Length (Decimal Inch) | 3.6417 |
| Toolholder Style | MG |
| Insert Compatibility | GIQ. 11.. |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4724 |
| Series | ChamGroove |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Profiling; Threading; Turning |
| Insert Holding Method | Screw |
| Minimum Hole Diameter (mm) | 11.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.4331 |
| Center to Cutting Edge (mm) | 6.70 |
| Center to Cutting Edge (Decimal Inch) | 0.2638 |
| Complete Insert Compatibility | GIQL 11-0.75-0.00; GIQL 11-0.85-0.00; GIQL 11-0.95-0.00; GIQL 11-1.20-R060; GIQL 11-1.80-R090; GIQL 11-15-1.50-0.05; GIQL 11-15-2.00-0.10; GIQL 11-15-2.00-R100; GIQL 11-15-2.50-0.20; GIQL 11-15-2.50-R125; GIQL 11-15-3.00-R150; GIQL 11-2.00-R100; GIQL 11-A |
