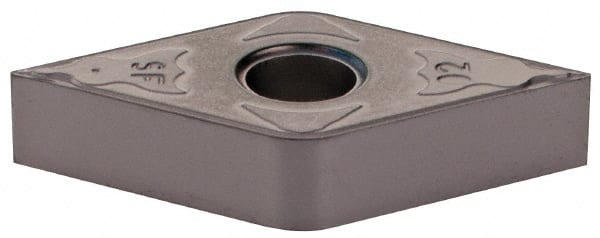

Iscar - DNGG430.5 SF Grade IC907 Carbide Turning Insert - 55° Diamond, 1/2" Inscr Circle, 3/16" Thick, 0.0079" Corner Radius
Item #: 04095121
Brand: Iscar
Model #: 5505461
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNGG |
| Insert Size | 430.5 |
| Material | Carbide |
| Length (mm) | 15.50 |
| Length (Decimal Inch) | 0.6102 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | IC907 |
| Material Grade | C2 |
| Chip Breaker | SF |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | S; M; H |
| Included Angle | 55 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
