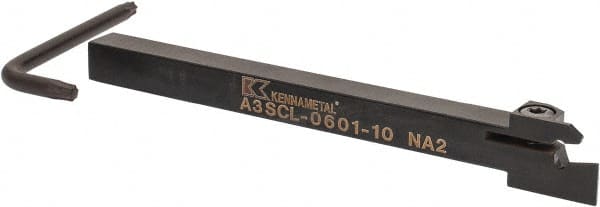

Kennametal - 10mm Max Depth, 0.79" Max Workpc Diam, Left Hand Indexable Cutoff Toolholder
Item #: 04102521
Brand: Kennametal
Model #: 1806713
Product Specifications
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Maximum Workpiece Diameter (Decimal Inch) | 0.7900 |
| Series | A3 |
| Toolholder Style | A3SC |
| Insert Compatibility | A2016... |
| Overall Length (mm) | 127.00 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Shank Width/Diameter (Decimal Inch) | 0.3750 |
| Shank Height (Decimal Inch) | 0.3750 |
| Insert Seat Size | 1 |
| Insert Holding Method | Screw |
| Through Coolant | No |
| Insert Width (Decimal Inch) | 0.0630 |
| Head Height (mm) | 15.24 |
| Head Height (Decimal Inch) | 0.6000 |
| Head Length (mm) | 20.07 |
| Head Length (Decimal Inch) | 0.7900 |
