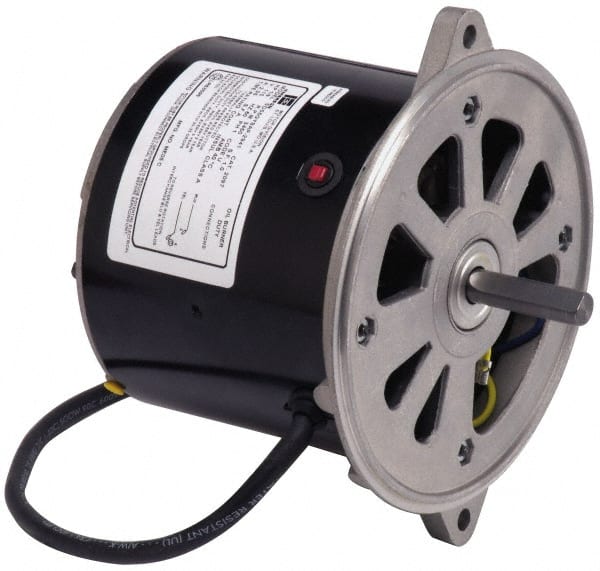

US Motors - 1/4 hp, ODP Enclosure, Manual Thermal Protection, 3,450 RPM, 115 Volt, 60 Hz, Split Phase Motor - Size 48N Frame, N-Flange Mount, 1 Speed, Sleeve Bearings, 3.7 Full Load Amps, A Class Insulation, Reversible
Item #: 04175881
Brand: US Motors
Model #: 2302
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Split Phase |
| Type of Enclosure | ODP |
| Horsepower | 1/4 |
| Thermal Protection Rating | Manual |
| Name Plate RPMs | 3450 |
| Voltage | 115 |
| Frequency Hz | 60 |
| Frame Size | 48N |
| Mount Type | N-Flange |
| Number of Speeds | 1 |
| Bearing Type | Sleeve |
| Applications | HVAC |
| Full Load Amperage | 3.7 |
| Insulation Class | A |
| Overall Length (Decimal Inch) | 8.3000 |
| Shaft Diameter x Length (Inch) | 1/2 x 1-15/16 |
| Full Load Efficiency Rating | 65.40 |
| Service Factor Rating | 1.00 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
