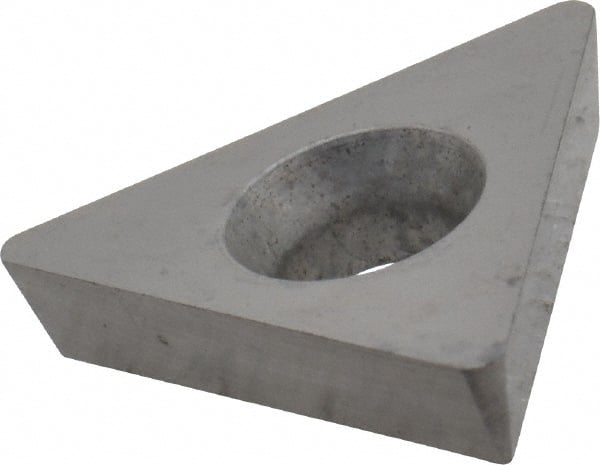

Interstate - TPGW322 Grade I55 Carbide Turning Insert - Uncoated, 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 04246914
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPGW |
| Insert Size | 322 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Manufacturer's Grade | I55 |
| Coating | Uncoated |
| Material Grade | C5 |
| Hole Diameter (Decimal Inch) | 0.1690 |
| Rake | Neutral |
| Rake Angle | 0 |
| Relief Angle | 11 |
| Primary Workpiece Material | P |
| Included Angle | 60 |
| Series | American Standard |
| Shape | Triangle |
