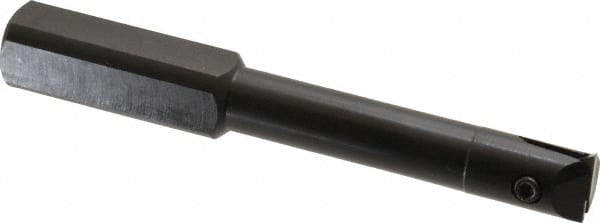

APT - 5/8" Min Bore Diam, 5" OAL, 3/4" Shank Diam, Indexable Boring Bar - 3" Max Bore Depth, TPG 221 Insert, Screw Holding Method
Item #: 04251328
Brand: APT
Model #: LD10M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Super-Lok |
| Minimum Bore Diameter (Inch) | 5/8 |
| Hand of Holder | Neutral |
| Maximum Bore Depth (Inch) | 3 |
| Maximum Bore Depth (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 5 |
| Shank Diameter (Inch) | 3/4 |
| Insert Compatibility | TPG 221 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Positive |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Number of Inserts Included in Order | 1 |
