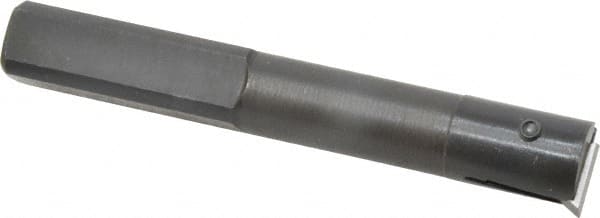

APT - 3/4" Min Bore Diam, 4-3/4" OAL, 3/4" Shank Diam, Indexable Boring Bar - 2-3/4" Max Bore Depth, TPG 321 Insert, Screw Holding Method
Item #: 04251344
Brand: APT
Model #: LD12S
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Super-Lok |
| Minimum Bore Diameter (Inch) | 3/4 |
| Hand of Holder | Neutral |
| Maximum Bore Depth (Inch) | 2-3/4 |
| Overall Length (Inch) | 4-3/4 |
| Shank Diameter (Inch) | 3/4 |
| Insert Compatibility | TPG 321 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Positive |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Number of Inserts Included in Order | 1 |
