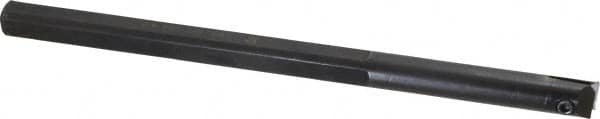

APT - 9/16" Min Bore Diam, 8" OAL, 1/2" Shank Diam, Indexable Boring Bar - TPG 221 Insert, Screw Holding Method
Item #: 04251609
Brand: APT
Model #: LB9L
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Super-Lok |
| Minimum Bore Diameter (Inch) | 9/16 |
| Hand of Holder | Neutral |
| Overall Length (Inch) | 8 |
| Shank Diameter (Inch) | 1/2 |
| Insert Compatibility | TPG 221 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 0 |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Number of Inserts Included in Order | 1 |
