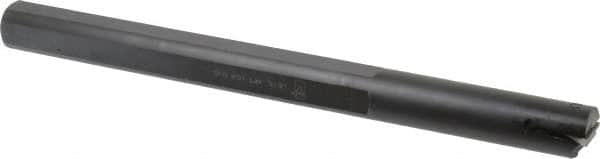

APT - 1-1/16" Min Bore Diam, 12" OAL, 1" Shank Diam, Indexable Boring Bar - TPG 321 Insert, Screw Holding Method
Item #: 04251666
Brand: APT
Model #: LE17L
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Super-Lok |
| Minimum Bore Diameter (Inch) | 1-1/16 |
| Hand of Holder | Neutral |
| Overall Length (Inch) | 12 |
| Shank Diameter (Inch) | 1 |
| Insert Compatibility | TPG 321 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Positive |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Number of Inserts Included in Order | 1 |
