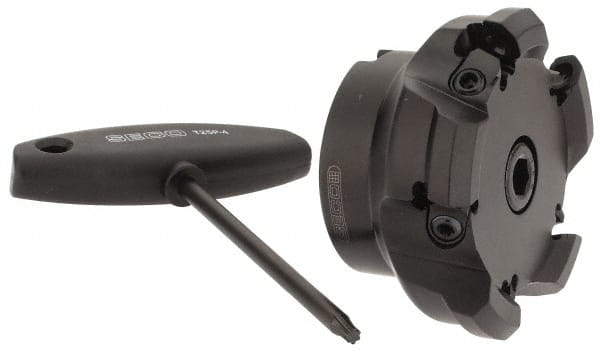

Seco - 3.15" Cut Diam, 1" Arbor Hole, 0.197" Max Depth of Cut, 43° Indexable Chamfer & Angle Face Mill - 5 Inserts, OF.. 070405 Insert, Right Hand Cut, 5 Flutes, Series R220.43
Item #: 04256954
Brand: Seco
Model #: 03266
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.1500 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 43 |
| Overall Height (Decimal Inch) | 1.9700 |
| Insert Compatibility | OF.. 070405 |
| Series | R220.43 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Wedge |
| Cutter Style | R220.43 |
| Number of Flutes | 5 |
| Keyway Width (Decimal Inch) | 0.3800 |
| Maximum Body Diameter (Decimal Inch) | 3.6200 |
| Maximum RPM | 5000 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
