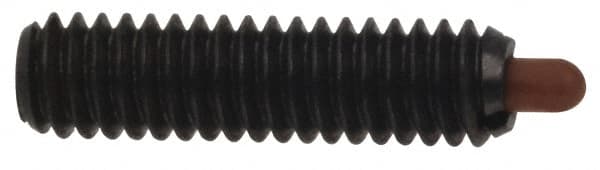

Gibraltar - 1/2-13, 1-1/4" Thread Length, 1/4" Plunger Projection, Steel Threaded Spring Plunger - 1/4" Max Plunger Diam, 1-1/4" Plunger Length, 6.6 Lb Init End Force, 17.4 Lb Final End Force
Item #: 04300141
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Nylon is a lightweight, nonconductive material that is resistant to impact, wear and abrasion. It is ideal for electrical applications or where corrosion is a concern.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Thread Size | 1/2-13 |
| Thread Length (Inch) | 1-1/4 |
| Nose Material | Nylon |
| Body Material | Steel |
| Maximum Plunger Diameter (Decimal Inch) | 0.2480 |
| Plunger Projection (Inch) | 1/4 |
| Locking Element | Yes |
| Body Length (Inch) | 1-1/4 |
| Plunger Length Type | Standard |
| Plunger Length (Inch) | 1-1/4 |
| Final End Force (Lb.) | 17.40 |
| Initial End Force (Lb.) | 6.60 |
