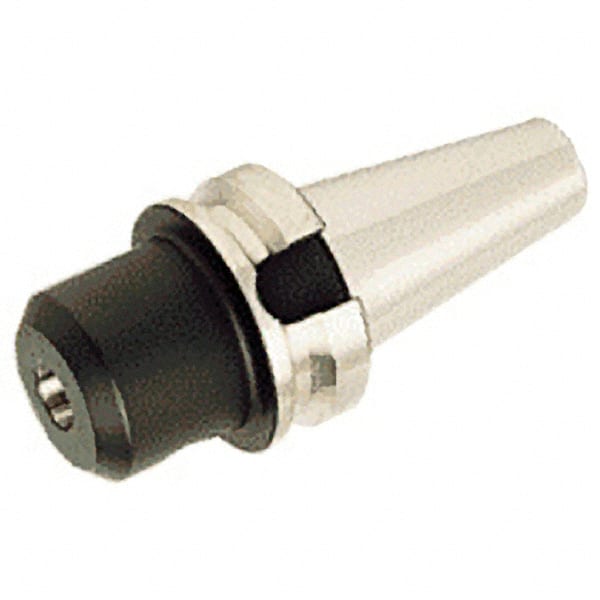

Iscar - BT40 Taper Shank 5/8" Hole End Mill Holder/Adapter - 48mm Nose Diam, 1-3/4" Projection, Through-Spindle Coolant
Item #: 04330213
Brand: Iscar
Model #: 4501152
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Hole Diameter (Inch) | 5/8 |
| Nose Diameter (mm) | 48.00 |
| Projection (Inch) | 1-3/4 |
| Projection (Decimal Inch) | 1.7500 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 1.4960 |
| Coolant Type | Through-Spindle |
| Retention Knob Thread Size | M16 |
