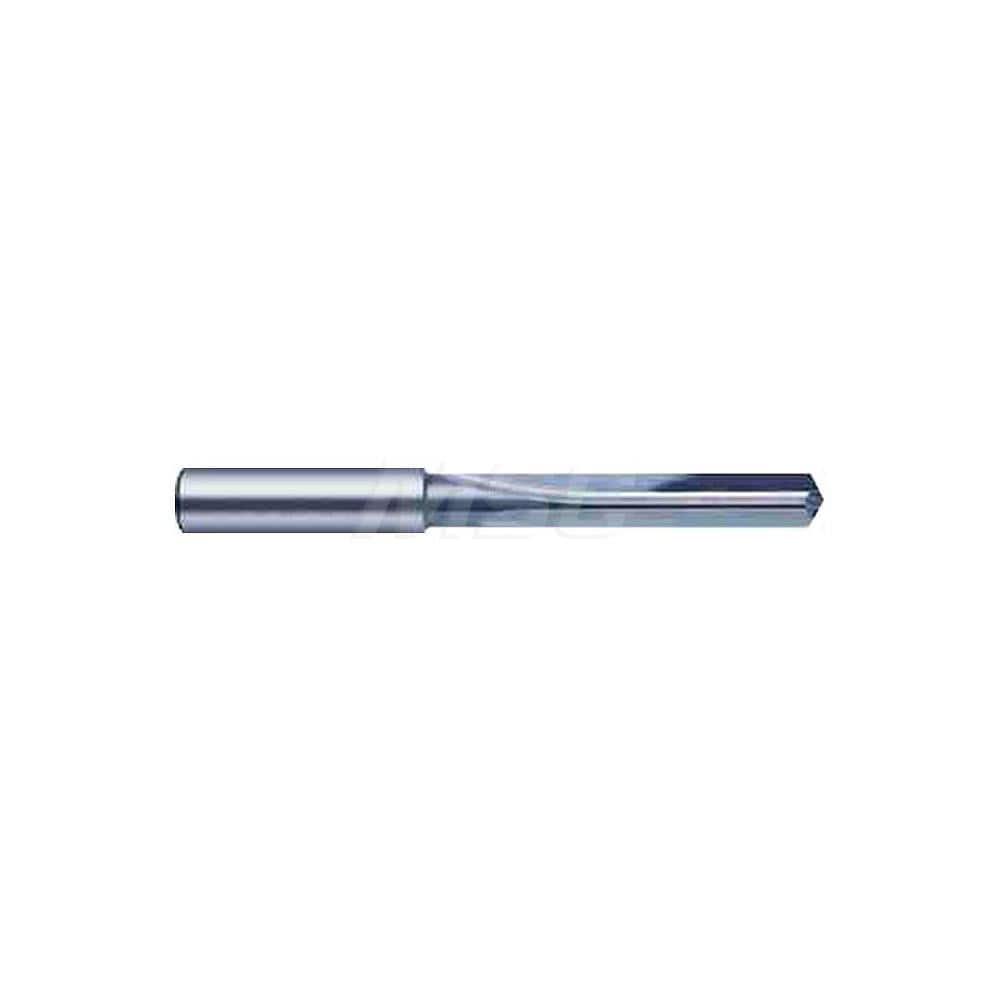

Die Drill Bit: 0.5906″ Dia, 120 °, Solid Carbide Uncoated, Series 768
Item #: 04530135
Brand: Guhring
Model #: 9007680150000
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (mm) | 15.00 |
| Tool Material | Carbide |
| Coating/Finish | Uncoated |
| Flute Length (mm) | 83.00 |
| Drill Point Angle | 120 |
| Overall Length (mm) | 133.00 |
| Shank Diameter (mm) | 16.00 |
| Coolant Through | Yes |
| Drill Bit Size (Decimal Inch) | 0.5906 |
| Material Grade | Submicron |
| Series | 768 |
| Number Of Flutes | 2 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Coolant-Hole Shape | Round |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.007 to +0.025 mm |
| Primary Workpiece Material | Aluminum |
| Primary Workpiece Material Code | K; N |
| Secondary Workpiece Material | Aluminum; Cast Iron; Aluminum Alloy |
| Maximum Drilling Depth (Decimal Inch) | 2.3820 |
| Maximum Drilling Depth (mm) | 60.50 |
| Shank Length (mm) | 48.00 |
| Flute By Diameter Ratio | 4xD |
| Specification Number | DIN 6535HA |
