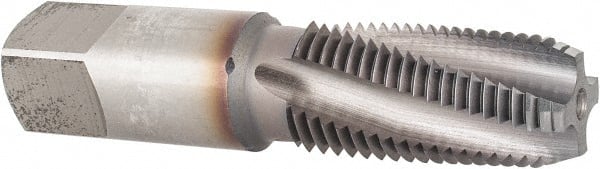

OSG - 1/4-18 NPT, 3/8 Inch Projection, 15° Helix Angle, 4 Flutes, Bottoming Chamfer, TiCN Coated, High Speed Steel, Spiral Flute Pipe Tap
Item #: 04561338
Brand: OSG
Model #: 1251308
Product Specifications
| Thread Size (Inch) | 1/4-18 |
| Thread Standard | NPT |
| Material | High Speed Steel |
| Finish/Coating | TiCN |
| Number of Flutes | 4 |
| Helix Angle | 15 |
| Overall Length (Inch) | 2-7/16 |
| Thread Length (Inch) | 1-1/16 |
| Shank Diameter (Decimal Inch) | 0.5625 |
| Square Size (Decimal Inch) | 0.4210 |
| Material Application | Aluminum; Carbon Steel; Cast Iron; Hardened Steel |
| Flute Direction | Right Hand |
| Projection (Decimal Inch) | 0.3750 |
| Chamfer | Bottoming |
