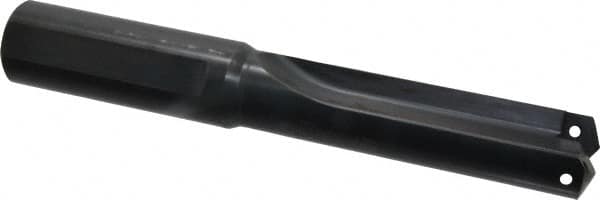

Allied Machine and Engineering - Series 3, 1-13/32 to 1-7/8" Diam, 1-1/2" Diam Straight Shank, Straight Flute Spade Drill - 4-3/4" Max Depth, 6-3/16" Body Length, 10" OAL, Short Length, Through Coolant
Item #: 04597746
Brand: Allied Machine and Engineering
Model #: 22030S-150L
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 3 |
| Minimum Drill Diameter (Inch) | 1-13/32 |
| Maximum Drill Diameter (Inch) | 1-7/8 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Spade Drill Length | Short Length |
| Overall Length (Inch) | 10 |
| Maximum Drill Depth (Inch) | 4-3/4 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 6 |
| Body Length (Inch) | 6-3/16 |
| Shank Length (Inch) | 4 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
