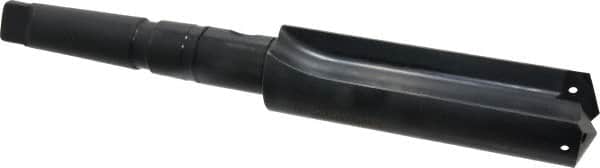

Allied Machine and Engineering - Series 4, 1-29/32 to 2-9/16" Diam, 4MT Taper Shank, Straight Flute Spade Drill - 5-1/8" Max Depth, 8-5/8" Body Length, 13-1/16" OAL, Short Length, Through Coolant
Item #: 04597811
Brand: Allied Machine and Engineering
Model #: 22040S-004I
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 4 |
| Minimum Drill Diameter (Inch) | 1-29/32 |
| Maximum Drill Diameter (Inch) | 2-9/16 |
| Shank Type | Taper Shank |
| Shank Taper Size | 4MT |
| Spade Drill Length | Short Length |
| Overall Length (Inch) | 13-1/16 |
| Maximum Drill Depth (Inch) | 5-1/8 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 6-1/2 |
| Body Length (Inch) | 8-5/8 |
| Through Coolant | Yes |
| Rotary Coolant Adapter Compatibility | 2T-4SR |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/4 |
