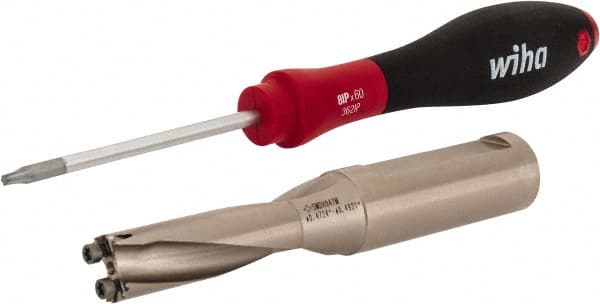

Sumitomo - 12 to 12.49mm Diam, 3xD, 1.734" Max Depth, 5/8" Shank Diam, 2.266" Flute, 4.141" OAL, Replaceable Tip Drill - Series SMD
Item #: 04723292
Brand: Sumitomo
Model #: 5L00W02
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SMD |
| Minimum Drill Diameter (mm) | 12.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.4724 |
| Maximum Drill Diameter (mm) | 12.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4917 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.7340 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Flute Length (Decimal Inch) | 2.2660 |
| Body Length (Decimal Inch) | 2.2660 |
| Overall Length (Decimal Inch) | 4.1410 |
| Toolholder Material | Steel |
| Shank Length (Decimal Inch) | 1.8750 |
