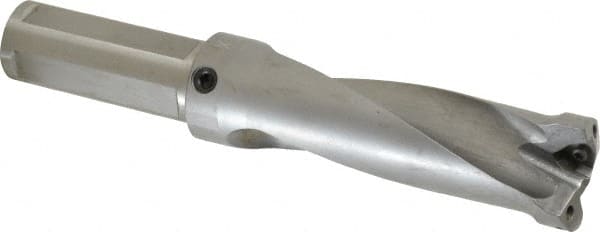

Kennametal - 4.1" Max Drill Depth, 2.5xD, 1-5/8" Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Straight Shank
Item #: 04785572
Brand: Kennametal
Model #: 1528367
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFT |
| Drill Diameter (mm) | 41.30 |
| Drill Diameter (Inch) | 1-5/8 |
| Drill Diameter (Decimal Inch) | 1.6260 |
| Maximum Drill Depth (Decimal Inch) | 4.1000 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.5xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 7.94x4.75 |
| Insert Size (Decimal Inch) | 0.3130x0.1870 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.7500 |
| Maximum Drill Diameter (mm) | 44.45 |
| Overall Length/Projection (mm) | 231.78 |
| Overall Length/Projection (Decimal Inch) | 9.1252 |
| Insert Compatibility | DFT 070408 |
| Body Length (Decimal Inch) | 5.8800 |
| Body Length (mm) | 149.23 |
| Shank Length (Decimal Inch) | 3.2500 |
| Series | Drill-Fix |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
