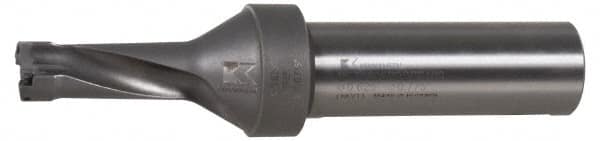

Kennametal - 88.9mm Max Drill Depth, 2.5xD, 35.7mm Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 04785622
Brand: Kennametal
Model #: 1528395
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFT |
| Drill Diameter (mm) | 35.70 |
| Drill Diameter (Decimal Inch) | 1.4055 |
| Maximum Drill Depth (mm) | 88.90 |
| Maximum Drill Depth (Decimal Inch) | 3.5000 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.5xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 6.62x3.75 |
| Insert Size (Decimal Inch) | 0.2600x0.1480 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.5310 |
| Maximum Drill Diameter (mm) | 38.89 |
| Overall Length/Projection (mm) | 130.18 |
| Overall Length/Projection (Decimal Inch) | 5.1252 |
| Insert Compatibility | DFT 06T308 |
| Body Length (Decimal Inch) | 5.1300 |
| Body Length (mm) | 130.18 |
| Shank Length (Decimal Inch) | 3.7500 |
| Series | Drill-Fix |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
