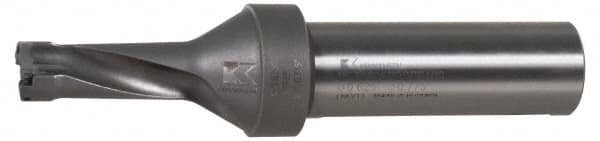

Kennametal - 4-1/4" Max Drill Depth, 2.5xD, 42.9mm Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 04785663
Brand: Kennametal
Model #: 1528402
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFT |
| Drill Diameter (mm) | 42.90 |
| Drill Diameter (Decimal Inch) | 1.6890 |
| Maximum Drill Depth (Decimal Inch) | 4.2500 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.5xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 7.94x4.75 |
| Insert Size (Decimal Inch) | 0.3130x0.1870 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.8130 |
| Maximum Drill Diameter (mm) | 46.04 |
| Overall Length/Projection (mm) | 152.40 |
| Overall Length/Projection (Decimal Inch) | 6.0000 |
| Insert Compatibility | DFT 070408 |
| Body Length (Decimal Inch) | 6.0000 |
| Body Length (mm) | 152.40 |
| Shank Length (Decimal Inch) | 3.7500 |
| Series | Drill-Fix |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
