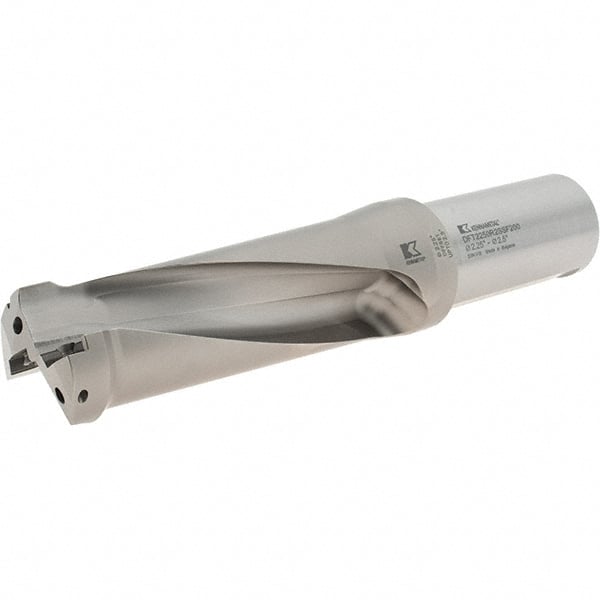

Kennametal - 143mm Max Drill Depth, 2.5xD, 2-1/2" Diam, Indexable Insert Drill - 2 Inserts, 2" Shank Diam, Straight Shank
Item #: 04785705
Brand: Kennametal
Model #: 1528421
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFT |
| Drill Diameter (mm) | 57.20 |
| Drill Diameter (Inch) | 2-1/2 |
| Drill Diameter (Decimal Inch) | 2.2520 |
| Maximum Drill Depth (mm) | 143.00 |
| Maximum Drill Depth (Decimal Inch) | 5.6300 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Shank Diameter (Inch) | 2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.5xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 9.92x5.25 |
| Insert Size (Decimal Inch) | 0.3910x0.2070 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.5000 |
| Maximum Drill Diameter (mm) | 63.50 |
| Overall Length/Projection (mm) | 196.85 |
| Overall Length/Projection (Decimal Inch) | 7.7500 |
| Insert Compatibility | DFT 090508 |
| Body Length (Decimal Inch) | 7.7500 |
| Body Length (mm) | 196.85 |
| Shank Length (Decimal Inch) | 4.0000 |
| Series | Drill-Fix |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
