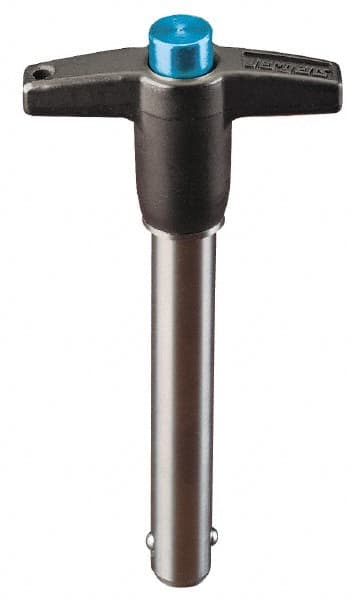

Jergens - 6mm Diam, 25mm Usable Length, T Handle, Push Button Quick Release Pin - 63.3mm Overall Length, Grade 17-4 Stainless Steel, Passivated Finish
Item #: 04834172
Brand: Jergens
Model #: 851015
Exact Tooling IR#: 04
Features and Benefits
Push-button quick-release pins are positive-locking pins installed and removed through a simple push of a button.
T-handle quick-release pins feature two handles that extend from either side of the pin s head, which allow for a secure grip when installing and releasing the pin.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Push Button Quick Release Pin |
| Handle Type | T Handle |
| System of Measurement | Metric |
| Pin Diameter (mm) | 6 |
| Usable Length (mm) | 25 |
| Overall Length (mm) | 63.3 |
| Pin Material | Stainless Steel |
| Pin Finish/Coating | Passivated |
| Pin Material Grade | 17-4 |
| Breaking Strength (Lb.) | 7868.00 |
| Breaking Strength Measurement | Double Shear |
| Includes | Split Ring |
| Ball Material | Stainless Steel |
| Ball Material Grade | 440C |
| Ball Hardness | RC 40 |
| Shank Hardness | RC 40 |
| Spindle Hardness | RC 40 |
| Fastener Standard | AMS-QQ-P-35; MIL-A-8625; MIL-C-5541; MIL-H-6875; QQ-P-416 |
| Handle Material | Aluminum |
