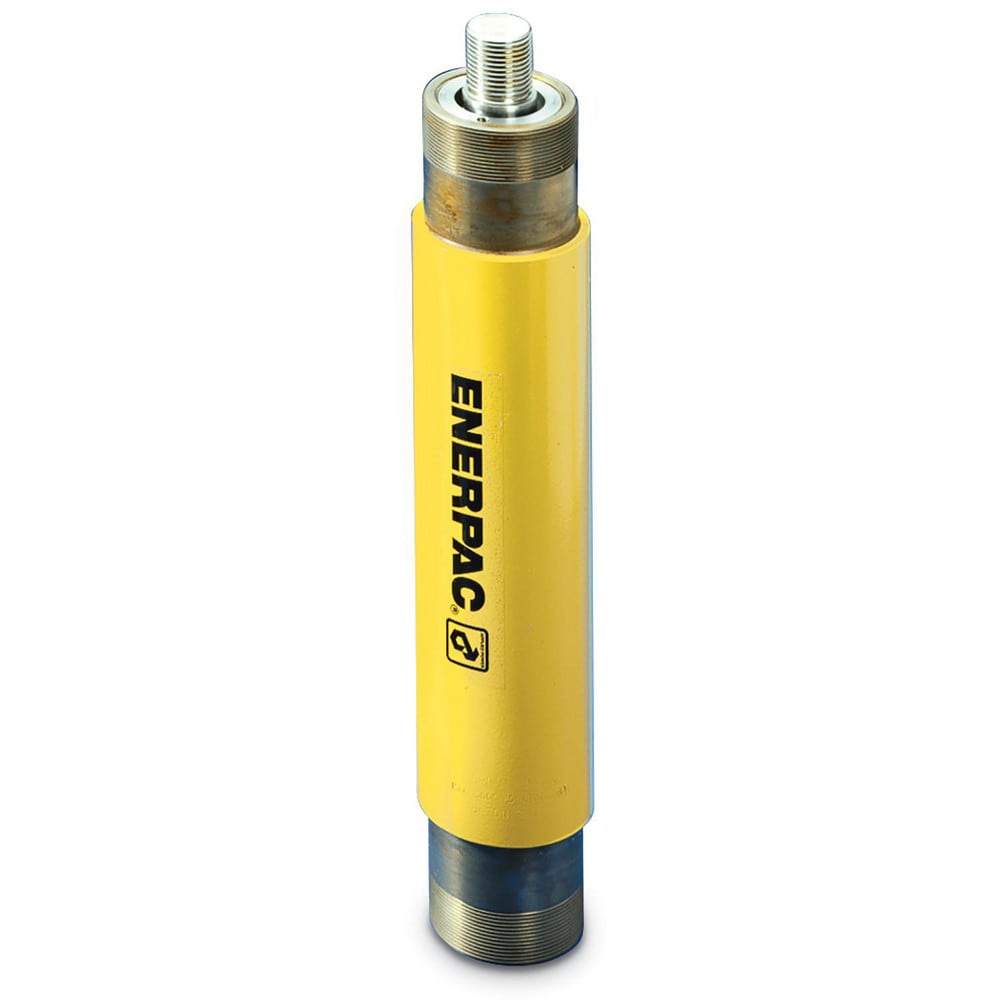

Portable Hydraulic Cylinders; Actuation: Double Acting; Load Capacity: 25; Stroke Length: 6.25; Oil Capacity: 30.68; Cylinder Bore Diameter (Decimal Inch): 2.50; Cylinder Effective Area: 1; Lowered Height: 16.69
Item #: 72648330
Brand: Enerpac
Model #: RD256
Product Specifications
| Actuation | Double Acting |
| Load Capacity | 25 |
| Stroke Length | 6.25 |
| Oil Capacity | 30.68 |
| Cylinder Bore Diameter (Decimal Inch) | 2.50 |
| Cylinder Effective Area | 1 |
| Lowered Height | 16.69 |
| Retracted Length | 17 |
| Extended Length | 22.94 |
| Cushion Type | No Cushion |
| Bore Diameter | 2.5000 |
| Outside Diameter | 3.63 in |
| Plunger Type | Solid |
| Maximum Working Pressure | 10000.000 |
| Body Material | Steel |
| Plunger Internal Thread Size | 1-1/2-12 |
| Series | RD |
| Plunger Internal Thread Length | 1.00 |
| Maximum Height (Inch) | 22.9400 |
| UNSPSC Code | 27121602 |
| Actuation | Double Acting |
| Load Capacity | 25 |
| Stroke Length | 6.25 |
| Oil Capacity | 30.68 |
| Cylinder Bore Diameter (Decimal Inch) | 2.50 |
| Cylinder Effective Area | 1 |
| Lowered Height | 16.69 |
| Retracted Length | 17 |
| Extended Length | 22.94 |
| Cushion Type | No Cushion |
| Bore Diameter | 2.5000 |
| Outside Diameter | 3.63 in |
| Plunger Type | Solid |
| Maximum Working Pressure | 10000.000 |
| Body Material | Steel |
| Plunger Internal Thread Size | 1-1/2-12 |
| Series | RD |
| Plunger Internal Thread Length | 1.00 |
| Maximum Height (Inch) | 22.9400 |
| UNSPSC Code | 27121602 |
| MSC Part # | 72648330 |
| Mfr Part # | RD256 |
| Country of Origin Country of Origin is subject to change | China |
