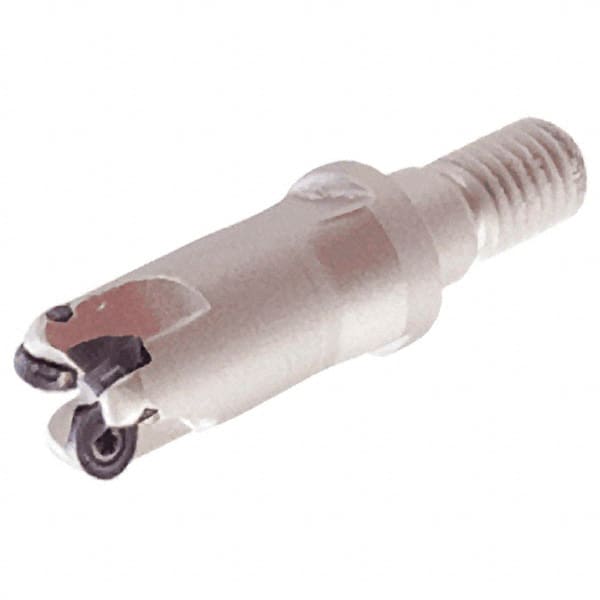

Iscar - 32mm Cutting Diam, 12mm Max Depth of Cut, Modular Connection Indexable Copy End Mill - 2 Inserts, R90CW, R90MT Insert, ER-M Toolholder
Item #: 04941969
Brand: Iscar
Model #: 3101234
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M16 |
| Number of Cutter Inserts | 2 |
| Insert Style | R90CW; R90MT |
| Toolholder Style | ER-M |
| Series | FlexFit; RoundMill |
| Overall Length (mm) | 43.00 |
| Insert Diameter (mm) | 20.00 |
| Insert Diameter (Decimal Inch) | 0.7874 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Modular Connection Size | M16 |
