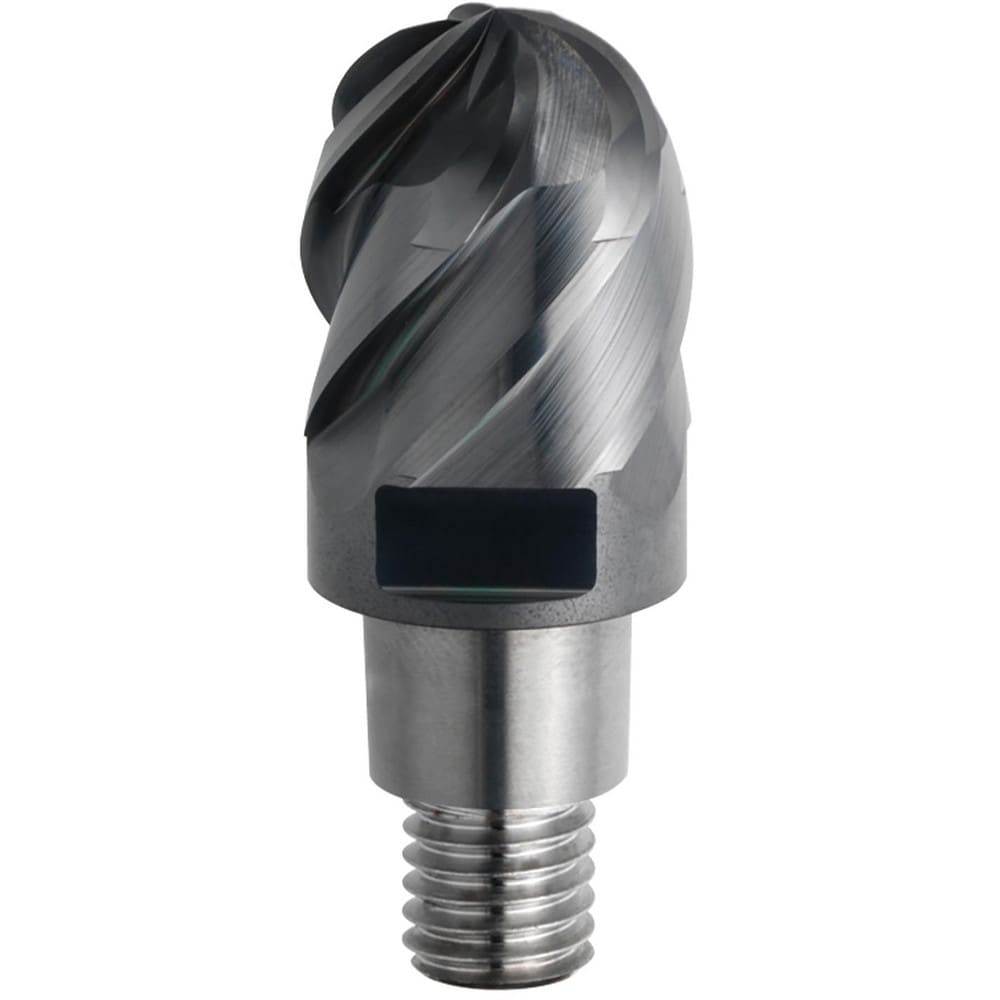

Ball End Mill Heads; Mill Diameter (Decimal Inch): 0.7500; Length Of Cut (Decimal Inch
Item #: 20489530
Brand: Mitsubishi
Model #: 683008
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7500 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8000 |
| Connection Type | iMX20 |
| Overall Length (Decimal Inch) | 1.1810 |
| Material | Solid Carbide |
| Cutting Direction | Multi-Directional |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Angle | Variable |
| Helix Style | Variable |
| Material Grade | Solid Carbide |
| Series/List | iMX |
| Undercutting | No |
| Number Of Flutes | 6 |
| Mill Diameter (Fractional Inch) | 3/4 |
| Finish Coating | AlTiN |
| UNSPSC Code | 27112803 |
