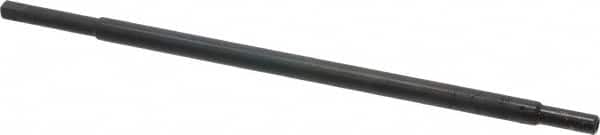

Walton - #0 to #6 Inch Tap, 8 Inch Overall Length, 5/16 Inch Max Diameter, Tap Extension - 0.142 Inch Tap Shank Diameter, 0.255 Inch Extension Shank Diameter, 0.191 Inch Extension Square Size, Alloy Steel
Item #: 05018700
Brand: Walton
Model #: 40006
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Tap Size (mm) | M1.6 |
| Minimum Tap Size (Inch) | #0 |
| Maximum Tap Size (mm) | M3.5 |
| Maximum Tap Size (Inch) | #6 |
| Overall Length (Inch) | 8 |
| Tap Shank Diameter (Decimal Inch) | 0.1420 |
| Maximum Diameter (Inch) | 5/16 |
| Tap Square Size (Decimal Inch) | 0.1120 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Extension Square Size (Decimal Inch) | 0.1910 |
| Material | Alloy Steel |
| Extension Opening Outside Diameter (Decimal Inch) | 0.2500 |
