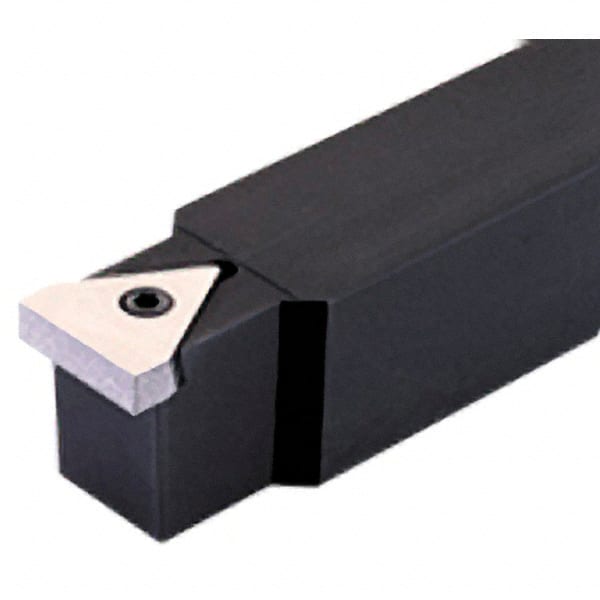

Iscar - XNUW 1003, 90° Lead Angle SXCN External Neutral Indexable Profiling Toolholder - 12mm Shank Height x 12mm Shank Width, 125mm Long
Item #: 05021555
Brand: Iscar
Model #: 2801310
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Neutral |
| Rake | Neutral |
| Insert Compatibility | XNUW 1003 |
| Toolholder Style | SXCN |
| Series | V-Lock |
| Through Coolant | No |
| Shank Height (mm) | 12.00 |
| Shank Width/Diameter (mm) | 12.00 |
| Overall Length (mm) | 125.00 |
| Insert Holding Method | Screw |
| Rake Angle | 0 |
| Lead Angle | 90 |
| Maximum Hole Depth (mm) | 17.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Complete Insert Compatibility | XNUW 1003-06 |
