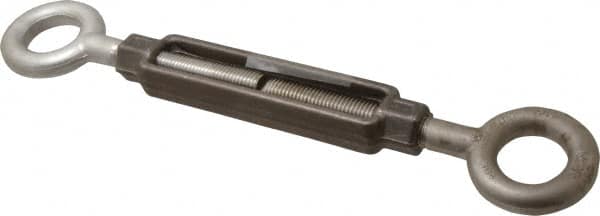

Made in USA - 5,200 Lb Load Limit, 3/4" Thread Diam, 6" Take Up, Stainless Steel Eye & Eye Turnbuckle - 8-1/8" Body Length, 1-1/16" Neck Length, 17-3/4" Closed Length
Item #: 05025762
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Eye and eye types have a closed loop connector on each end. They are ideal when the connected cable has a movable anchor point.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Eye & Eye |
| Working Load Limit (Lb.) | 5200 |
| Thread Diameter (Inch) | 3/4 |
| Take Up (Inch) | 6 |
| Body Length (Inch) | 8-1/8 |
| Closed Length (Inch) | 17-3/4 |
| Body Neck Length (Inch) | 1-1/16 |
| Body Material | Stainless Steel |
| Eye Type | Round |
| Thread Size (Inch) | 3/4-10 |
| Material Grade | 304 |
| Body Finish/Coating | Uncoated |
