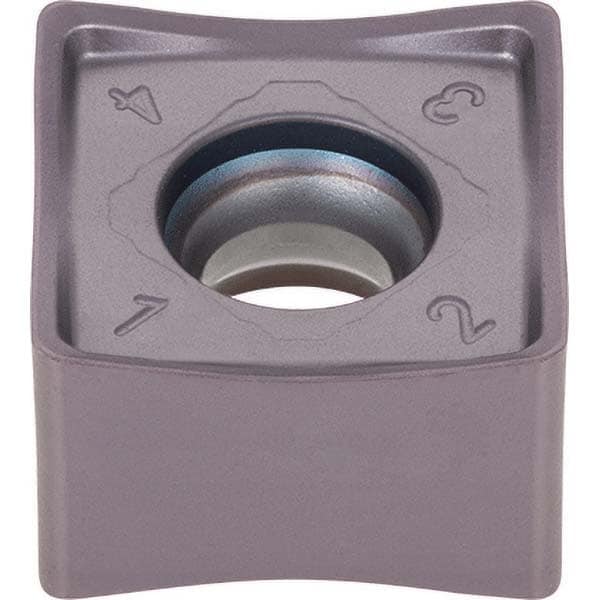

Milling Insert: SNMU120608HNEN-MM AH3135 AH3135, Solid Carbide
Item #: 18040840
Brand: Tungaloy
Model #: 6780139
Product Specifications
| Insert Style | SNMU |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | AH3135 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2950 |
| Thickness (mm) | 7.50 |
| Coating/Finish | TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 120608 |
| Material Grade | M30; P30 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Inscribed Circle (mm) | 12.00 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Maximum Depth of Cut (mm) | 9.50 |
| Series | SNMU |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Ansi Code | SNMU120608HNEN-MM AH3135 |
| Iso Code | SNMU120608HNEN-MM AH3135 |
| Standards | ISO |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SNMU120608HNEN-MM |
| Cutter Series Compatibility | THSN12 |
| Chip Breaker | MM |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Length (mm) | 12.00 |
| Width (Decimal Inch - 4 Decimals) | 0.4724 |
| Width (mm - 2 Decimals) | 12.00 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.4724 |
| Insert Style | SNMU |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | AH3135 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2950 |
| Thickness (mm) | 7.50 |
| Coating/Finish | TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 120608 |
| Material Grade | M30; P30 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Inscribed Circle (mm) | 12.00 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Maximum Depth of Cut (mm) | 9.50 |
| Series | SNMU |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Ansi Code | SNMU120608HNEN-MM AH3135 |
| Iso Code | SNMU120608HNEN-MM AH3135 |
| Standards | ISO |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SNMU120608HNEN-MM |
| Cutter Series Compatibility | THSN12 |
| Chip Breaker | MM |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Length (mm) | 12.00 |
| Width (Decimal Inch - 4 Decimals) | 0.4724 |
| Width (mm - 2 Decimals) | 12.00 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.4724 |
| MSC Part # | 18040840 |
| Mfr Part # | 6780139 |
| Country of Origin Country of Origin is subject to change | Japan |
