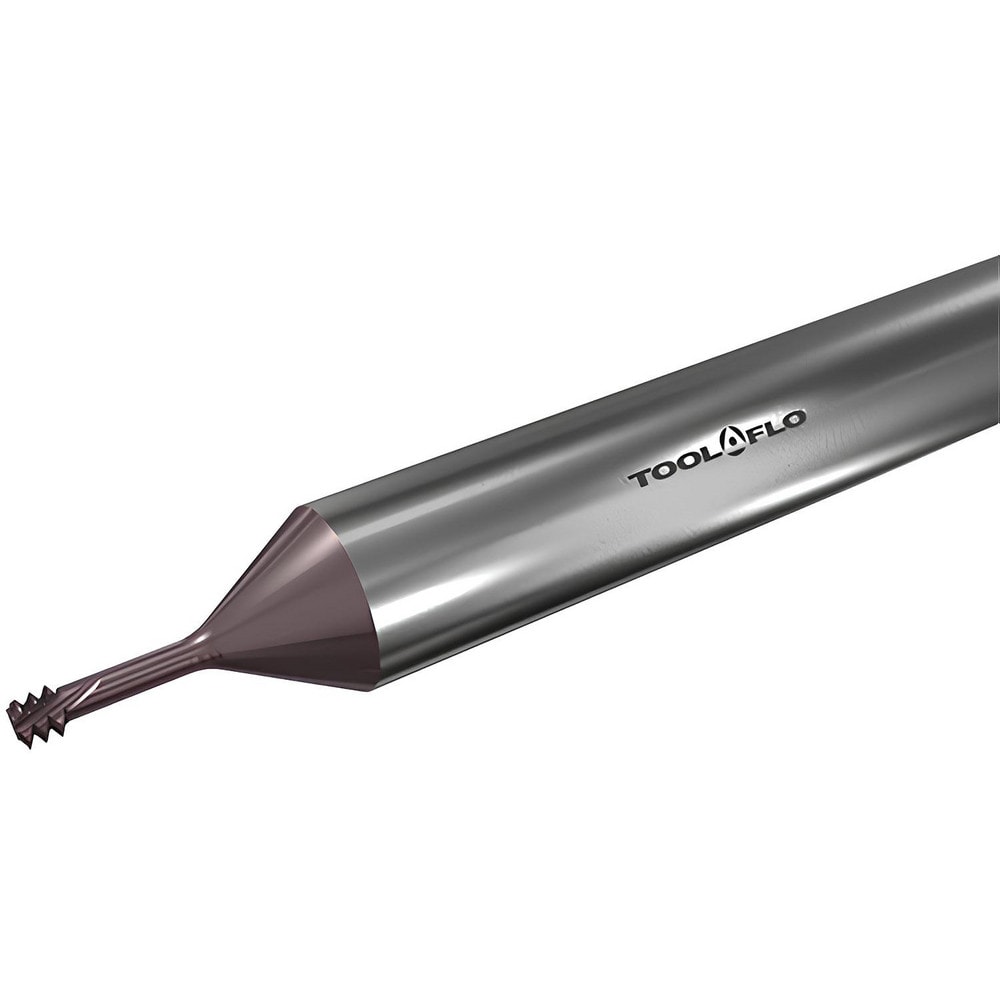

Helical Flute Thread Mill: M6x1 - M8x1, Internal, 3 Flute, 1/4" Shank Dia, Solid Carbide
Item #: 01597772
Brand: Tool-Flo
Model #: 2468807
Product Specifications
| Material | Carbide |
| Thread Size (mm) | M6x1 - M8x1 |
| Thread Type | Internal |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Cutting Diameter (Decimal Inch) | 0.1830 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5500 |
| Overall Length (Decimal Inch) | 2.5000 |
| Thread Standard | ISO |
| Flute Direction | Left Hand |
| Material Grade | Micrograin |
| Pitch (mm) | 1.00 |
| Number Of Flutes | 3 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| UNSPSC Code | 23242117 |
