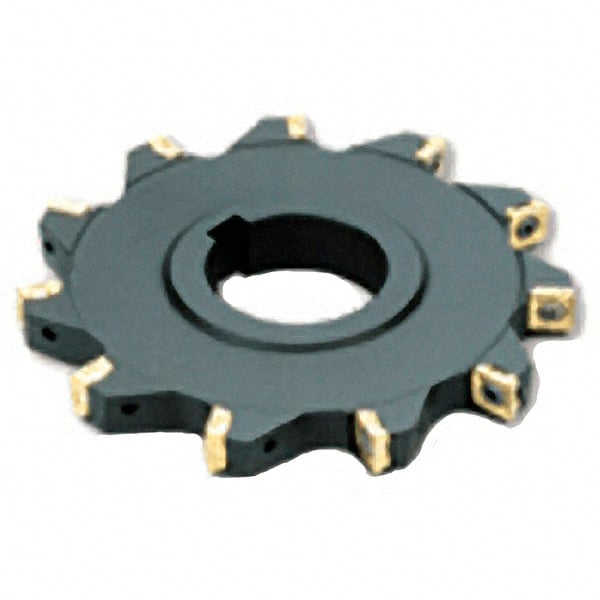

Iscar - Arbor Hole Connection, 0.4724" Cutting Width, 2.0276" Depth of Cut, 160mm Cutter Diam, 1.5748" Hole Diam, 11 Tooth Indexable Slotting Cutter - SSB Toolholder, QD.T Insert
Item #: 05127501
Brand: Iscar
Model #: 3100984
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 12.00 |
| Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 51.50 |
| Maximum Depth of Cut (Decimal Inch) | 2.0276 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 11 |
| Toolholder Style | SSB |
| Series | IscarMill(SSB) |
| Insert Style | QD.T |
| Staggered Tooth | No |
| Number of Cutter Inserts | 11 |
| Hub Diameter (mm) | 56.00 |
| Hub Diameter (Decimal Inch) | 2.2047 |
