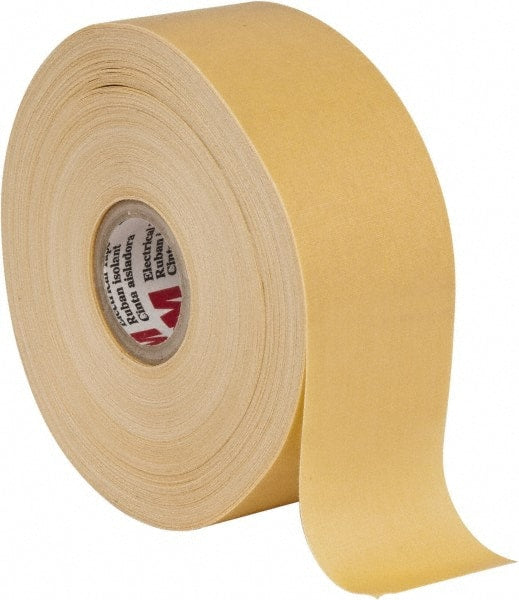

3M - 1-1/2" x 110', Yellow Cotton Cloth Electrical Tape - Series 2520, 8 mil Thick, 800 V/mil Dielectric Strength, 50 Lb./Inch Tensile Strength
Item #: 05228473
Brand: 3M
Model #: 00054007048329
Exact Tooling IR#: 04
Features and Benefits
Cotton cloth is made from natural, densely woven cotton fibers. It provides good insulation and strength, conforms to a range of substrates and protects against abrasion.
| Product Specifications | |
|---|---|
| Width (Inch) | 1-1/2 |
| Length Range | 36 yd. - 71.9 yd. |
| Color | Yellow |
| Material Type | Cotton Cloth |
| Length (Feet) | 110.00 |
| Length (Meters) | 33.00 |
| Length (yd) | 36.00 |
| Thickness (mil) | 8.00 |
| Adhesive Meterial | Rubber |
| Series Part Number | 2520 |
| Tensile Strength (Lb./Inch) | 50.00 |
| Minimum Operating Temperature (C) | 0.00 |
| Minimum Operating Temperature (F) | 32.00 |
| Maximum Operating Temperature (C) | 105.00 |
| Maximum Operating Temperature (F) | 220.00 |
| Applications | Insulating; Protecting |
| Dielectric Strength (V/mil) | 800.00 |
| Standards | ASTM D-1000; ASTM D-374; ASTM D-295 |
| Series | 2520 |
| Width (mm) | 38.00 |
