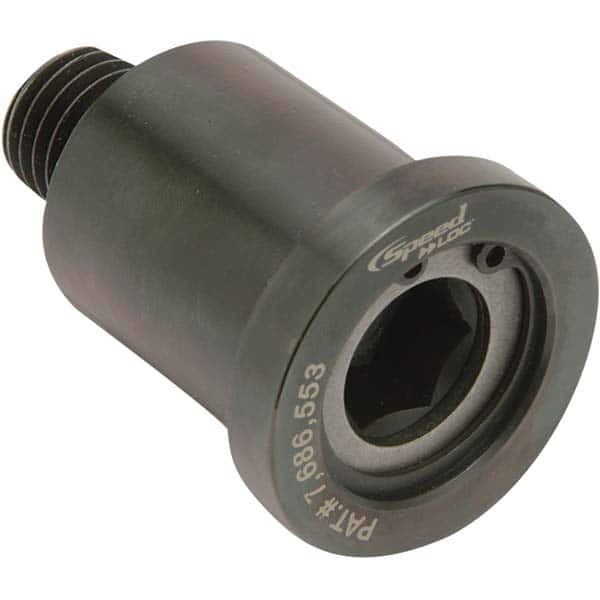

MPower by Modern Industries - Modular Fixturing Shanks System Compatibility: SpeedLoc Shank Diameter (mm): 25.0000
Item #: 18953950
Brand: MPower by Modern Industries
Model #: 200-AS-25014
Product Specifications
Modular Fixturing Shanks; System Compatibility: SpeedLoc ; Shank Diameter (mm): 25.0000 ; Plate Thickness Compatibility (Decimal Inch): 2.0000 ; Head Diameter (Decimal Inch): 1.2180 ; Shank Length (Decimal Inch): 2.0500 ; Maximum Holding Force (Lb.): 14709.00
| System Compatibility | SpeedLoc |
| Shank Diameter (mm) | 25.0000 |
| Plate Thickness Compatibility (Decimal Inch) | 2.0000 |
| Head Diameter (Decimal Inch) | 1.2180 |
| Shank Length (Decimal Inch) | 2.0500 |
| Maximum Holding Force (Lb.) | 14709.00 |
| Overall Length (Decimal Inch) | 2.3000 |
| Head Height (Decimal Inch) | 0.0000 |
| Key Size (Inch) | 0.375 |
| Material | 4340 Steel |
| Finish/Coating | BlackOxide |
