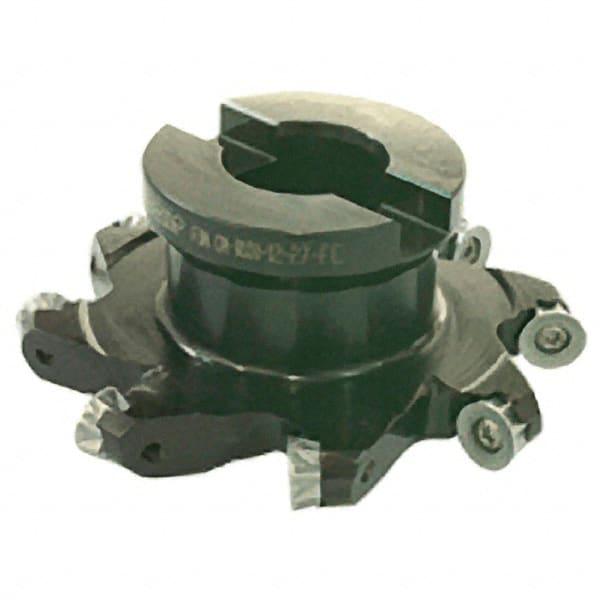

Iscar - Shell Mount B Connection, 0.4803" Cutting Width, 1.0551" Depth of Cut, 88.6mm Cutter Diam, 1-1/16" Hole Diam, 8 Tooth Indexable Slotting Cutter - FDN-CM Toolholder, O45MT, R90.. Insert
Item #: 05352364
Brand: Iscar
Model #: 3101318
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount B |
| Cutting Width (mm) | 12.20 |
| Cutting Width (Decimal Inch) | 0.4803 |
| Maximum Depth of Cut (mm) | 26.80 |
| Maximum Depth of Cut (Decimal Inch) | 1.0551 |
| Cutter Diameter (mm) | 88.60 |
| Cutter Diameter (Decimal Inch) | 3.4882 |
| Hole Diameter (mm) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Number of Teeth | 8 |
| Toolholder Style | FDN-CM |
| Series | IscarMill(FDN-CM) |
| Insert Style | O45MT; R90.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 8 |
| Hub Diameter (mm) | 55.00 |
| Hub Diameter (Decimal Inch) | 2.1654 |
