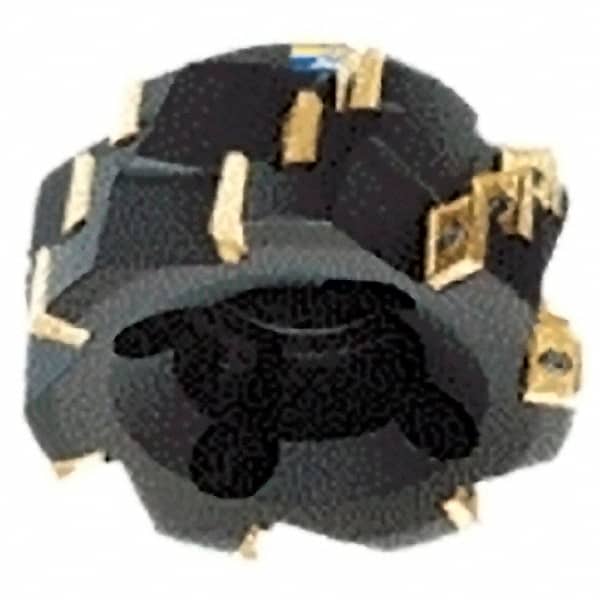

Iscar - 10 Inserts, 3" Cut Diam, 1-1/4" Arbor Diam, 1.55" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 2.6" High, 3M AXKT 2006 Insert Compatibility, Series Mill2000
Item #: 05352455
Brand: Iscar
Model #: 3101535
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 2.6000 |
| Insert Compatibility | 3M AXKT 2006 |
| Series | Mill2000 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 1.5500 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Cutter Style | 3MSM |
| Number of Flutes | 5 |
| Complete Insert Compatibility | 3M AXKT 200612R-PDR; 3M AXKT 200616R-PDR; 3M AXKT 200624R-PDR; 3M AXKT 200632R-PDR; 3M AXKT 200640R-PDR; 3M AXKT 2006PDTR; 3M AXKT 2006PDTR-RM |
