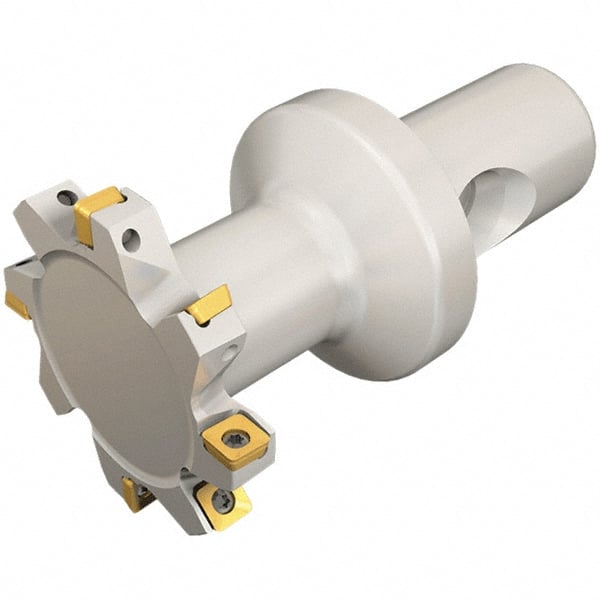

Iscar - Shank Connection, 0.315" Cutting Width, 0.5472" Depth of Cut, 50mm Cutter Diam, 8 Tooth Indexable Slotting Cutter - FDN-CF4 Toolholder, Q/XOMT Insert
Item #: 05352935
Brand: Iscar
Model #: 3102278
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 13.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.5472 |
| Cutter Diameter (mm) | 50.00 |
| Cutter Diameter (Decimal Inch) | 1.9685 |
| Modular Connection Size | CF4 |
| Number of Teeth | 8 |
| Toolholder Style | FDN-CF4 |
| Series | ClickFit Heliquad(FDN-CF4) |
| Insert Style | Q/XOMT |
| Staggered Tooth | No |
| Number of Cutter Inserts | 8 |
