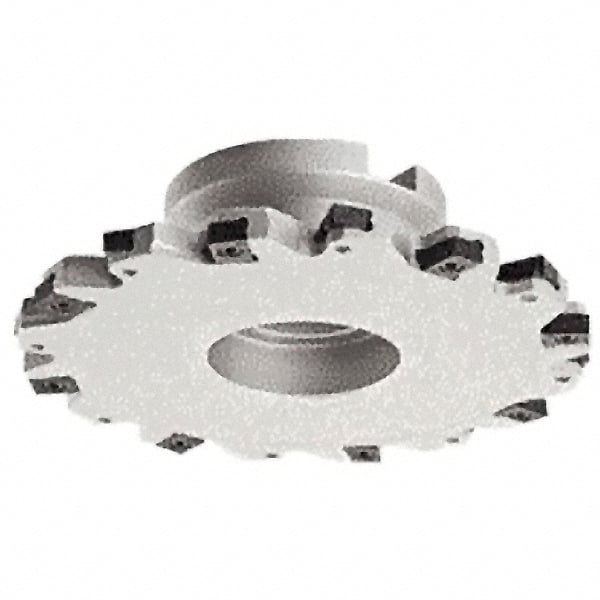

Iscar - Shell Mount C Connection, 2.0276" Depth of Cut, 200mm Cutter Diam, 1.5748" Hole Diam, 20 Tooth Indexable Slotting Cutter - FDN-LN12 Toolholder, LNET Insert
Item #: 05353214
Brand: Iscar
Model #: 3102450
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount C |
| Maximum Depth of Cut (mm) | 51.50 |
| Maximum Depth of Cut (Decimal Inch) | 2.0276 |
| Cutter Diameter (mm) | 200.00 |
| Cutter Diameter (Decimal Inch) | 7.8740 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 20 |
| Toolholder Style | FDN-LN12 |
| Series | TangSlot(FDN-LN12) |
| Insert Style | LNET |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 20 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Cutting Width (mm) | 12.00 |
| Hub Diameter (mm) | 92.00 |
| Hub Diameter (Decimal Inch) | 3.6220 |
